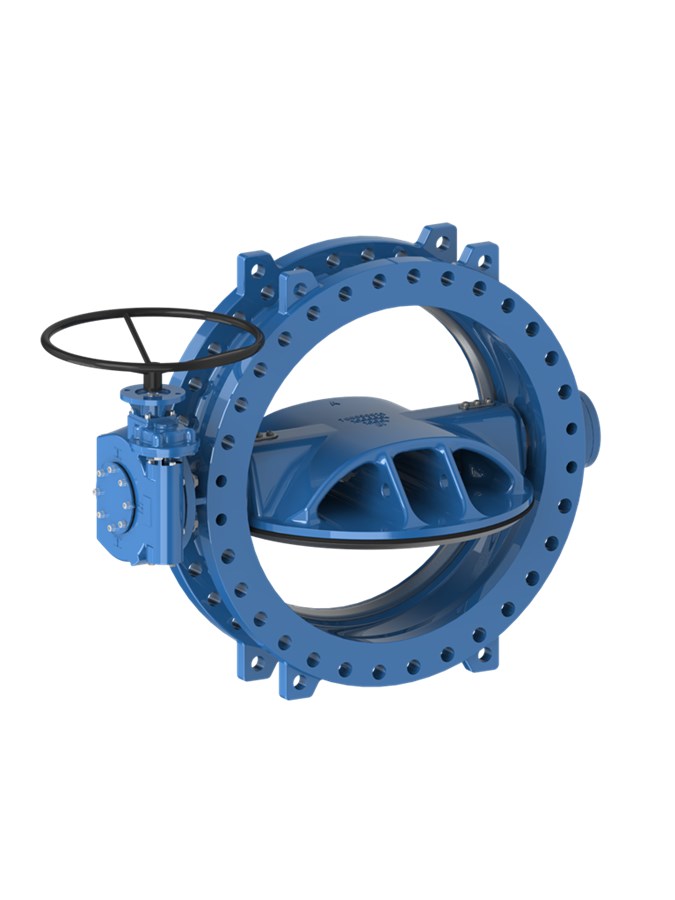

DOUBLE ECCENTRIC BUTTERFLY VALVE, FLANGED, CL. 150
AWWA C504 short body, seal on disc, 250 psi, SS 17-4 ph shafts, IP68 gearbox, handwheel, pos.ind.
Contact
AVK Valves Company Hong Kong Ltd.
Unit 01-02, 21/F, Pilkem Commercial Centre, 8 Pilkem Street, Jordan, Kowloon Hong Kong
Double eccentric butterfly valve to AWWA C504 with stainless steel seat and IP68 gearbox with handwheel, for drinking water and neutral liquids to max. 160°F
AVK double eccentric butterfly valves are designed for extended service life and easy operation. The disc seal is made of AVK's drinking water approved EPDM rubber featuring an excellent compression set and thus ability to regain its original shape. The NSF approved epoxy coating and fully encapsulated shaft/disc connection ensure high durability. The valves are suitable for bi-directional application.
| Variant 766/1292-002 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile iron |
| DN: | DN600 - DN1200 |
| PN: | 250 psi |
| Closing direction: | Clockwise to Close |
Features
- Double eccentric design causes the seal compression to release after just a few degrees of opening reducing operating torque
- Flow-through disc with a stiff, light weight box-design for high flow velocity applications; low sensitivity to cavitation prevents turbulent flow
- Rubber seal around the disc circumference held in place by an SS316 disk ring
- Drinking water approval for all rubber parts in contact with the water
- Shaft in high strength 17-4 stainless steel
- Anti blow-out shaft design with replacable O-ring shaft seal and self lubricating bronze/PTFE radial bearings. A replaceable POM disc at the end of the stub shaft serves as thrust bearing
- Shaft ends fully encapsulated in disc and fixed with dowels corrosion protected with O-rings and a stainless steel security plate; a safety key backs up the dowel connection
- Gearbox in IP68 with handwheel and position indicator
- Fasteners in stainless steel A4
- Body and disc of ductile iron coated with blue RAL 5017 fusion bonded epoxy to AWWA C550, GSK, and approved by WRAS-DVGW/W270/UBA
Downloads
Reference nos. and dimensions:
| Reference no. | Size inch |
PN Class |
L Inch |
L1 Inch |
L2 Inch |
H1 Inch |
W1 Inch |
W2 Inch |
W3 Inch |
W4 Inch |
Net Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 766-0600-12-2400910192 | CL250B | 8 | 7.3 | 7.5 | 18.2 | 16.2 | 26.5 | 21.3 | 21.5 | ||
| 766-0750-12-2400910192 | CL250B | 12 | 8 | 8.3 | 21.7 | 19.6 | 32.7 | 25.5 | 25.7 | ||
| 766-0900-12-2400910192 | CL250B | 12 | 11.3 | 11.6 | 26 | 23.2 | 36.5 | 32.7 | 32.9 | ||
| 766-1050-12-2400910192 | CL250B | 12 | 14.1 | 14.3 | 29.5 | 26.7 | 42.9 | 38.5 | 38.6 | ||
| 766-1200-12-2400910192 | CL250B | 15 | 15.1 | 16.1 | 33.5 | 29.9 | 46.9 | 43.3 | 44 |
Components
| 1. | Gearbox | Cast iron |
| 2. | Shaft, drive | Stainless steel UNS17400 H1075 |
| 3. | Body | Ductile iron A536 65-45-12 |
| 4. | Disc | Ductile iron A536 65-45-12 |
| 5. | Shaft, stub | Stainless steel UNS17400 H1075 |
| 6. | Security plate | Stainless steel AISI 316 |
| 7. | Washer | Stainless steel A4-70 |
| 8. | Bolt | Stainless steel A4-70 |
| 9. | O-ring | EPDM rubber |
| 10. | Dowel pin | Stainless steel AISI 431 |
| 11. | Seal retainer ring | Stainless steel AISI 316 |
| 12. | Disc seal | EPDM rubber |
| 13. | Seal housing | Bronze CC331G (AB1) |
| 14. | Thrust bearing | Stainless steel AISI 316 |
| 15. | Washer | POM |
| 16. | End cover | Ductile iron A536 65-45-12 |
| 17. | Key | Stainless steel A4-70 |
| 18. | Seal housing | Bronze CC331G (AB1) |
| 19. | Radial bearing | Bronze/PTFE comp. on SS back |
| 20. | Seat ring | Stainless steel AISI 316 |
| 21. | Disc cover | Stainless steel AISI 316 |
| 22. | Gasket | EPDM rubber |
| 23. | Safety key | Stainless steel AISI 431 |
Test/Approvals
- ANSI/NSF 61
- ANSI/NSF 372
- Approved according to NSF-61, NSF International
- Approved according to NSF/ANSI Standard 372
Standards
- AWWA C504
- Face-to-face dimension according to AWWA C504-short body
- Flange drilling to ANSI class 150.
